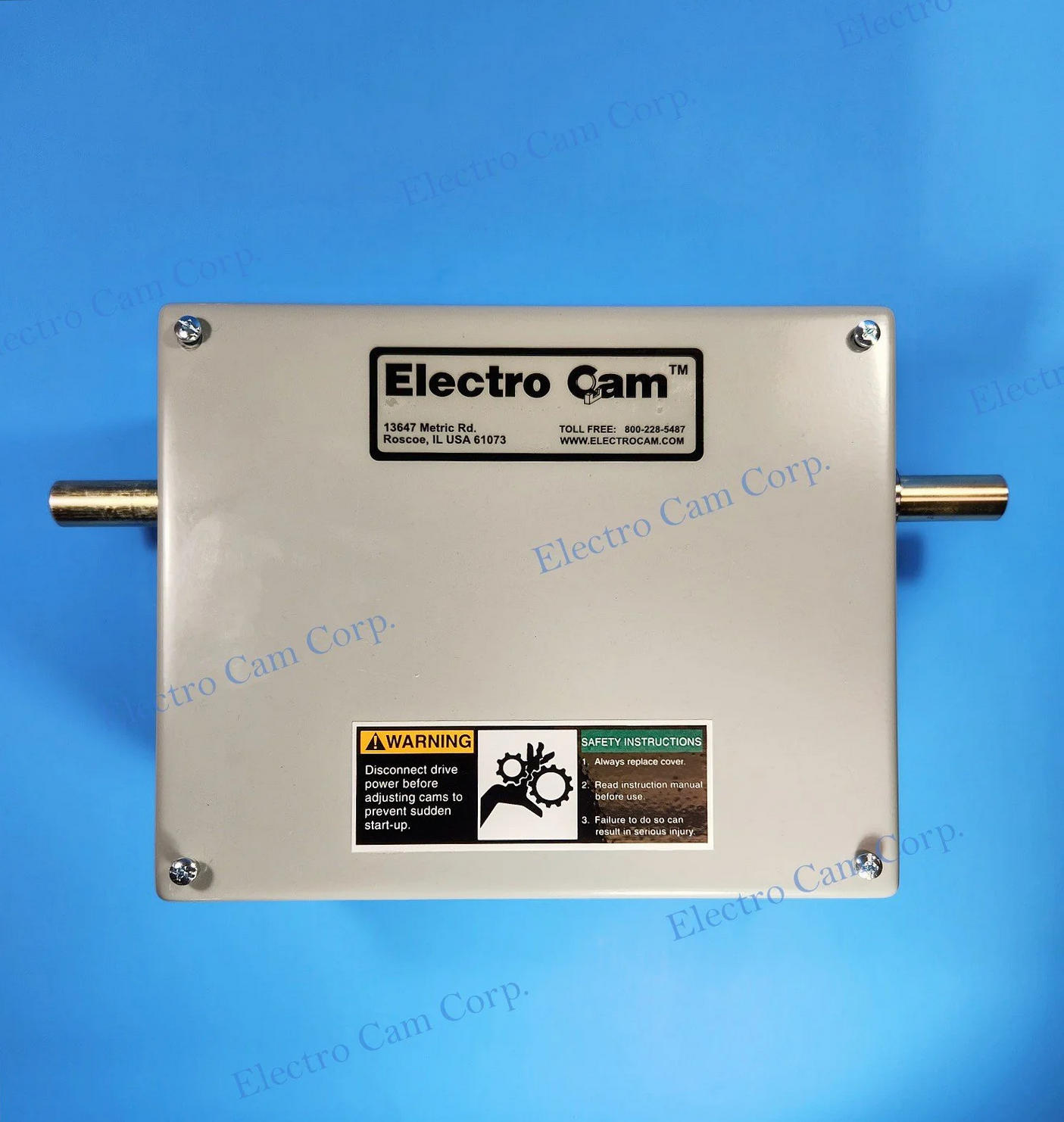

EC-2012-12-DDN Cam Switch

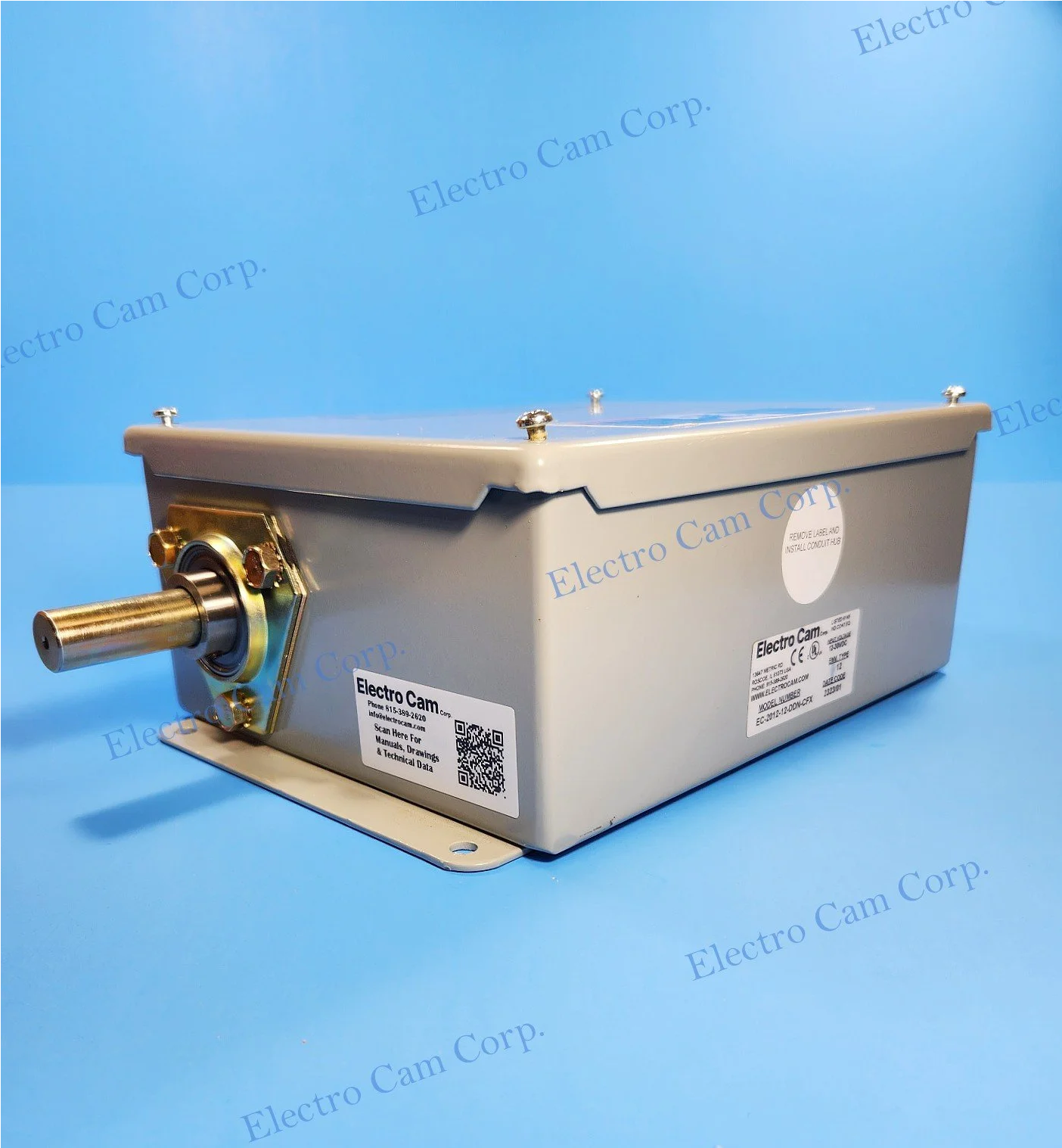

EC-2012-12-DDN Cam Switch - Image 2

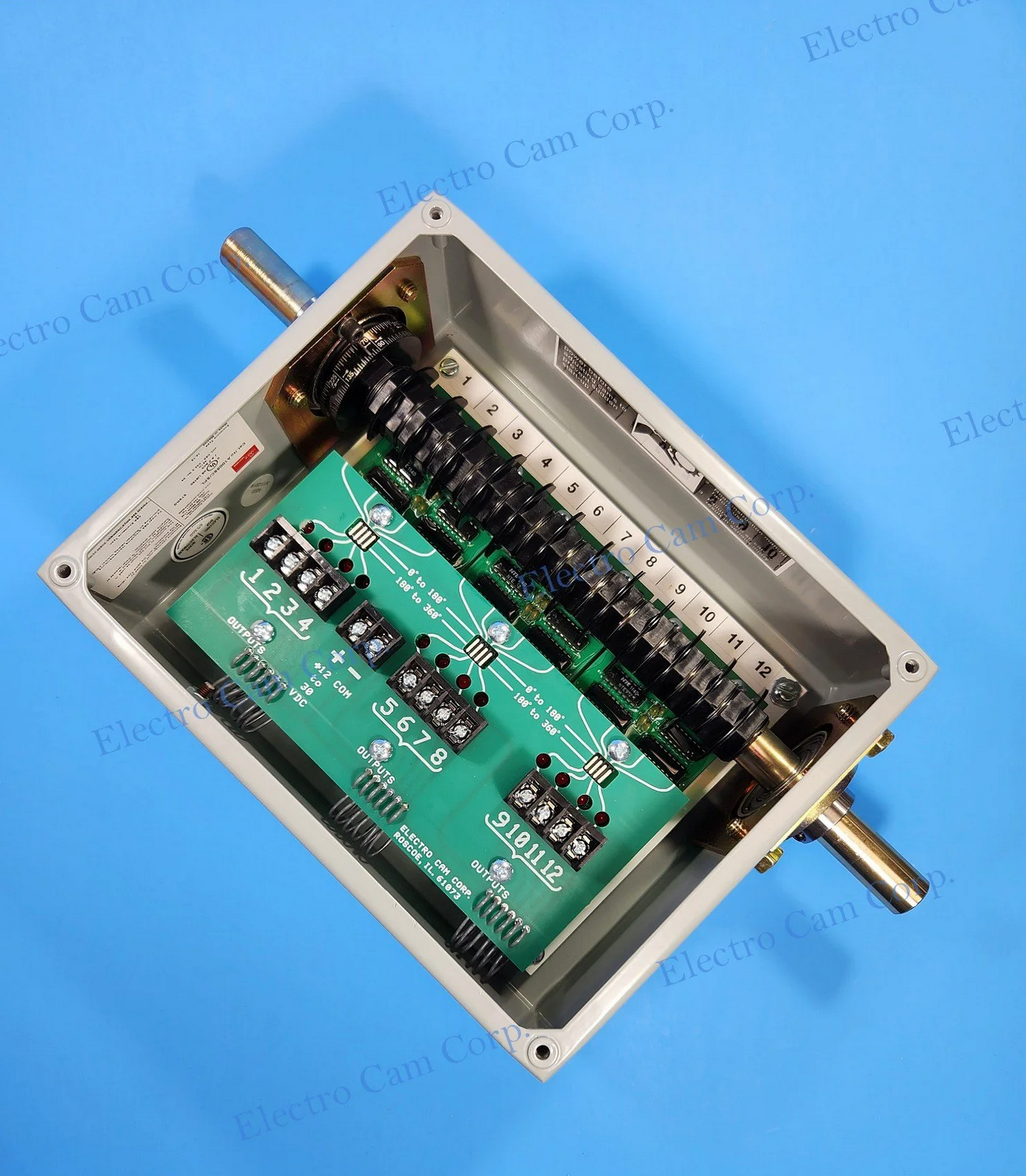

EC-2012-12-DDN Cam Switch - Image 3

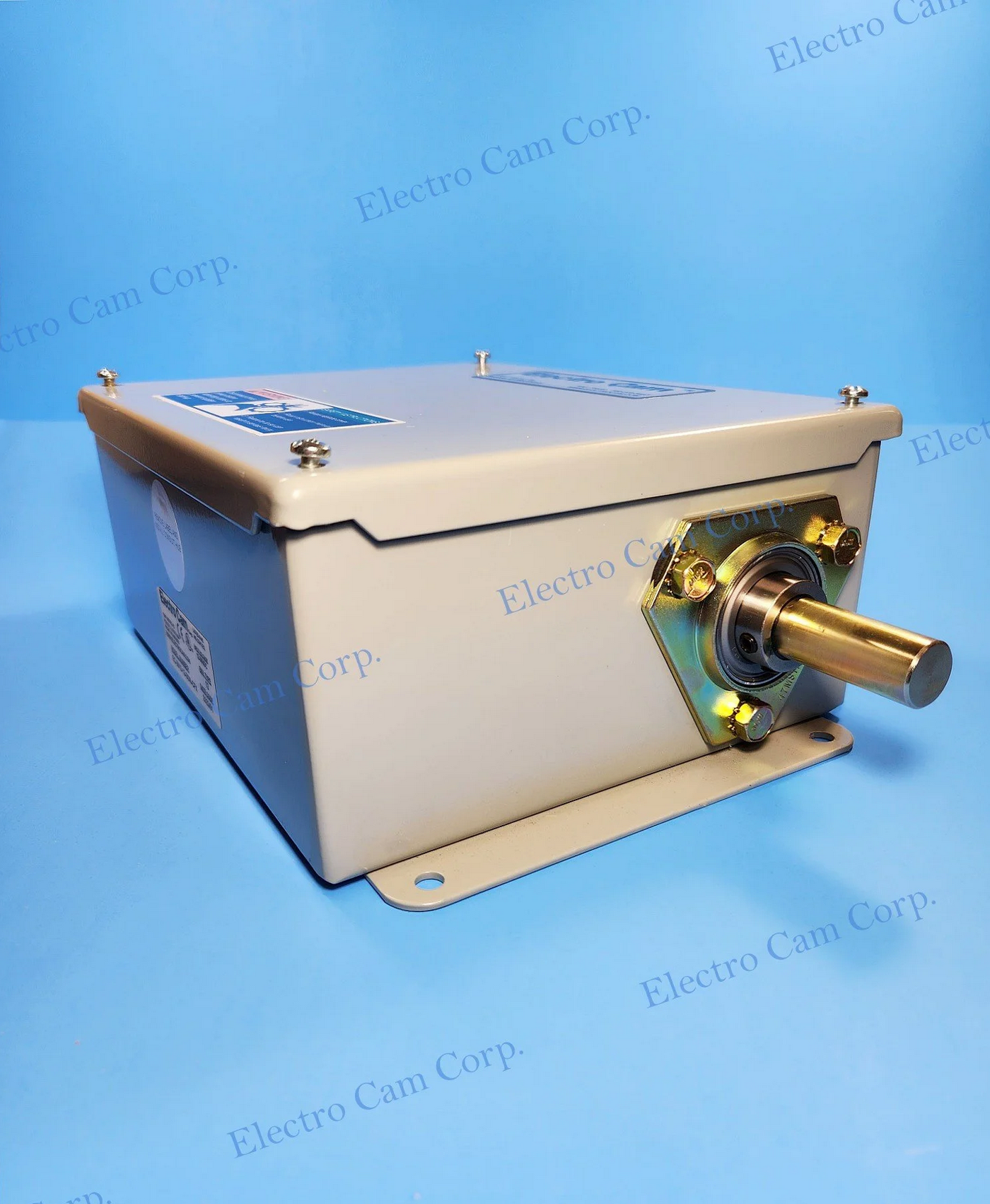

EC-2012-12-DDN Cam Switch - Image 4

EC-2012-12-DDN Cam Switch

Price range: $1,650.00 through $1,700.00

SKU: N/A Category:

Description

12-30 VDC Input

High Vibration Environments

NEMA 12 Enclosure

12 Outputs

Double Ended Shaft Extension

0 – 200 ma DC Sinking Type Output

Available Options:

CFX – Extra Conformal Coating on bottom PC Board & DIP Switches are replaced by Push-In Jumpers to change light energizing (0-180 degrees)/dark energizing (181-360 degrees) mode

To specify discs please call the factory, 815-389-2620

Additional information

Weight 40 lbs
Options:

Standard, CFX
