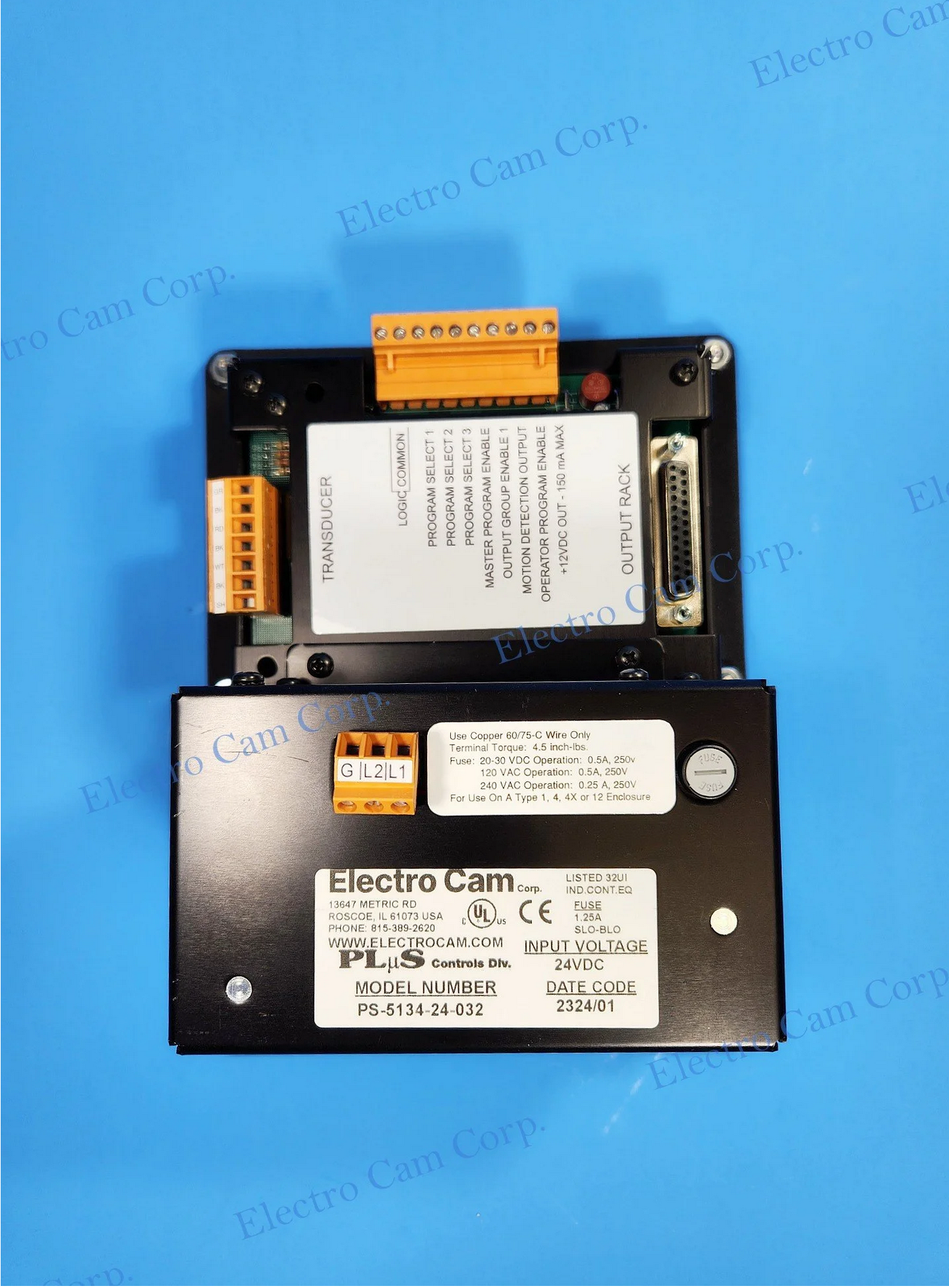

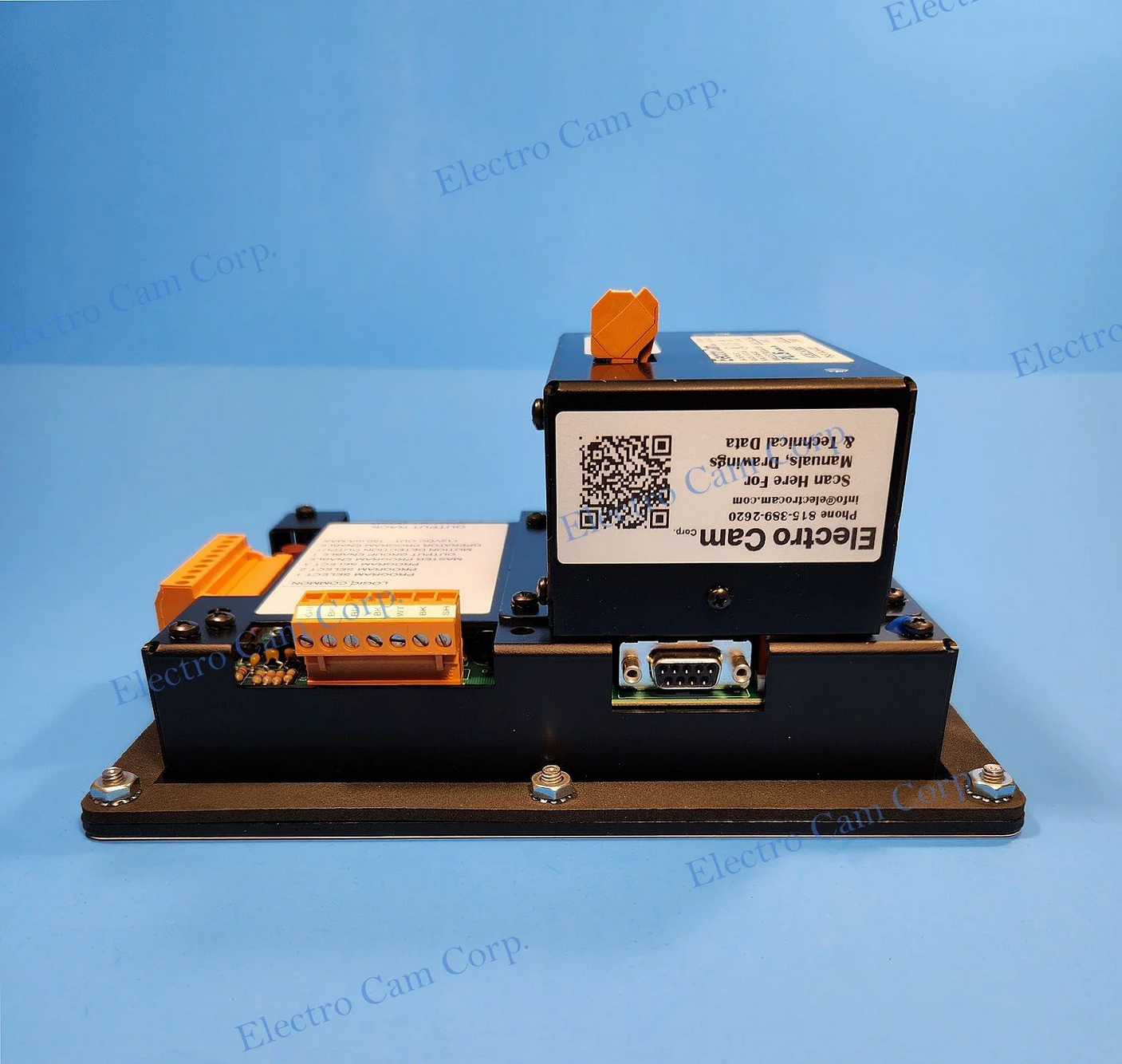

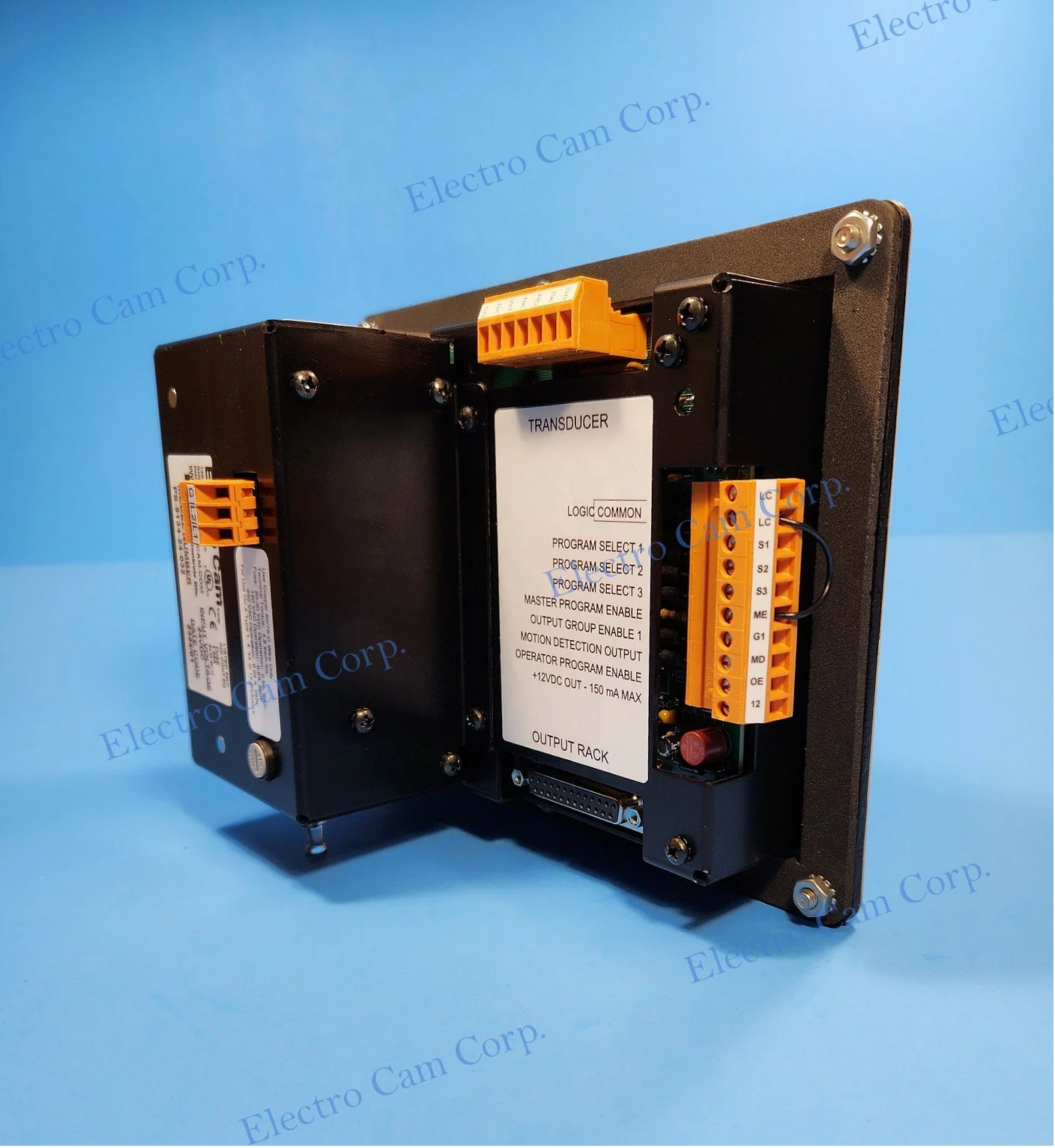

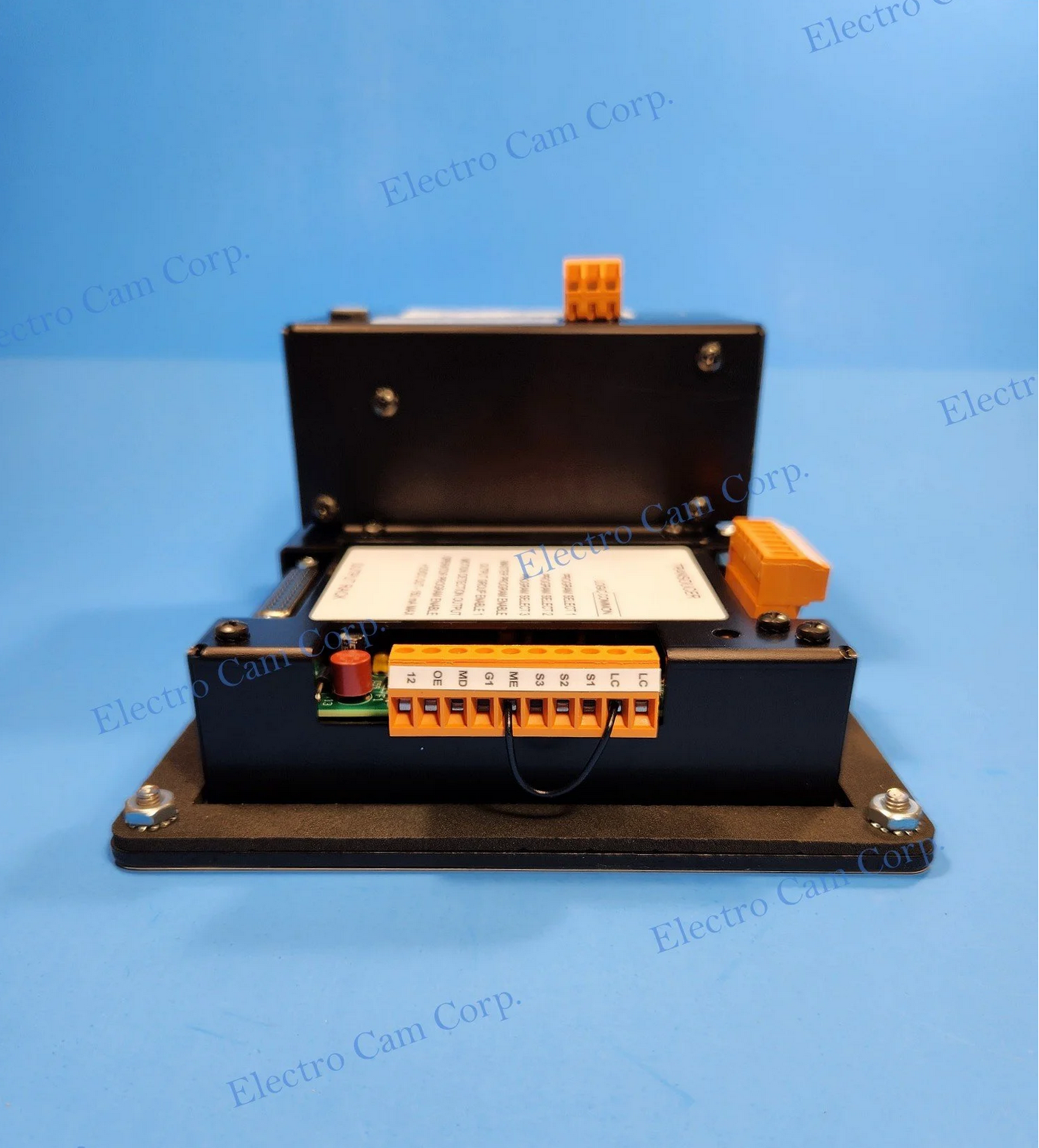

Resolver Based

24V DC Input

8.5 x 6.5” LED Display

Requires External DIN Rail-Mounted, DC Transistor Output Rack

Separate DC Transistor Rack (1 Input)

Output Enable Modes & Standard Features

Separate Input/Output Rack with Modules

32 DC Transistor Outputs

Available Options:

D – Output Directional ANDing – ($100)

F – Additional Setpoint/Program Storage ($100)

G – Gray Code Position Output (8 bit) ($100)

H – 12-Bit Resolution ($350)

L – Leading & Trailing Edge Speed Compensation ($150)

U – CE Mark, 24 VDC Input Only ($100)

V – Vibration Protective Coating ($50.00)

W – Washdown Boot ($125.00)

*If combining options please call the factory, 815-389-2620
