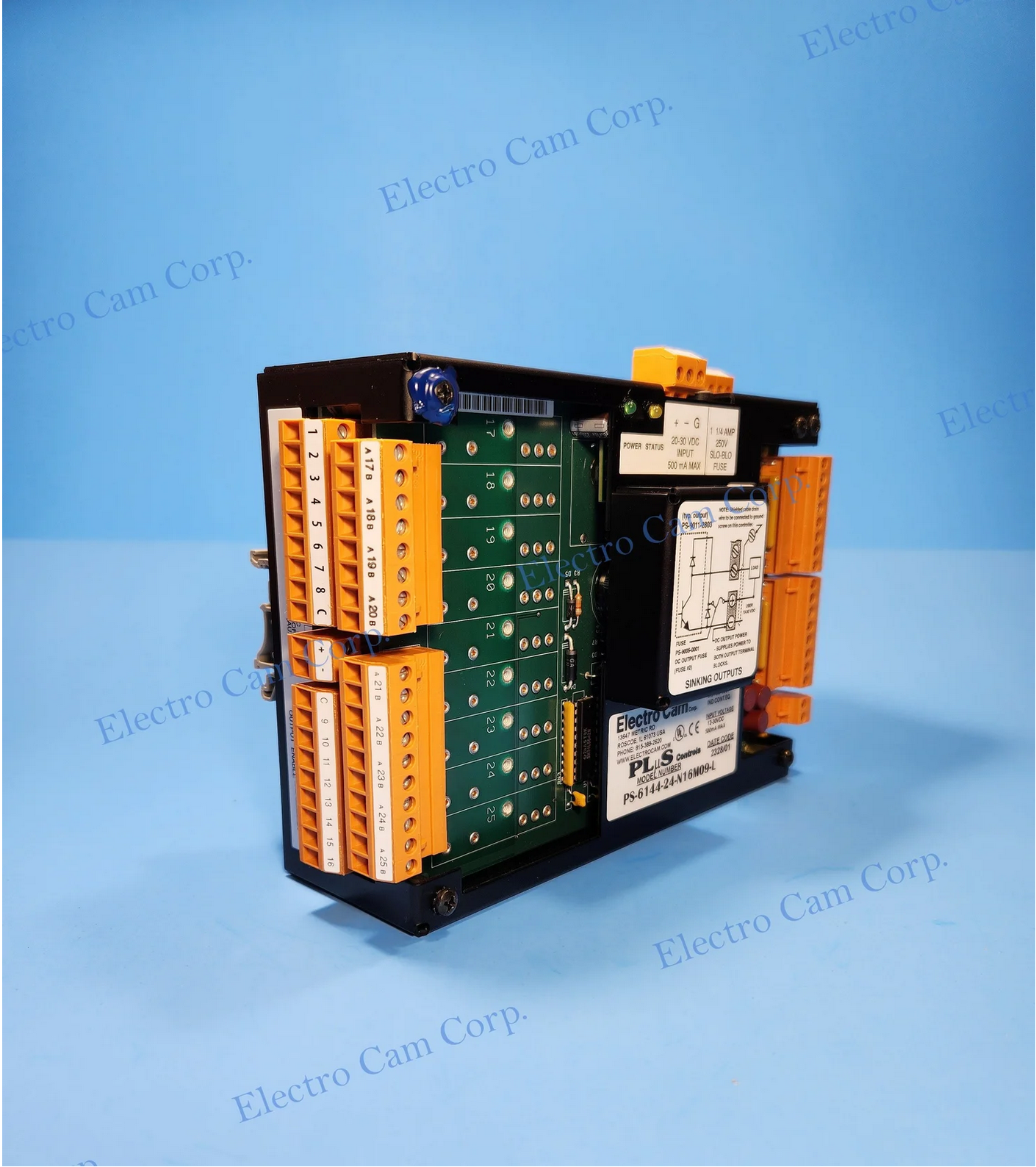

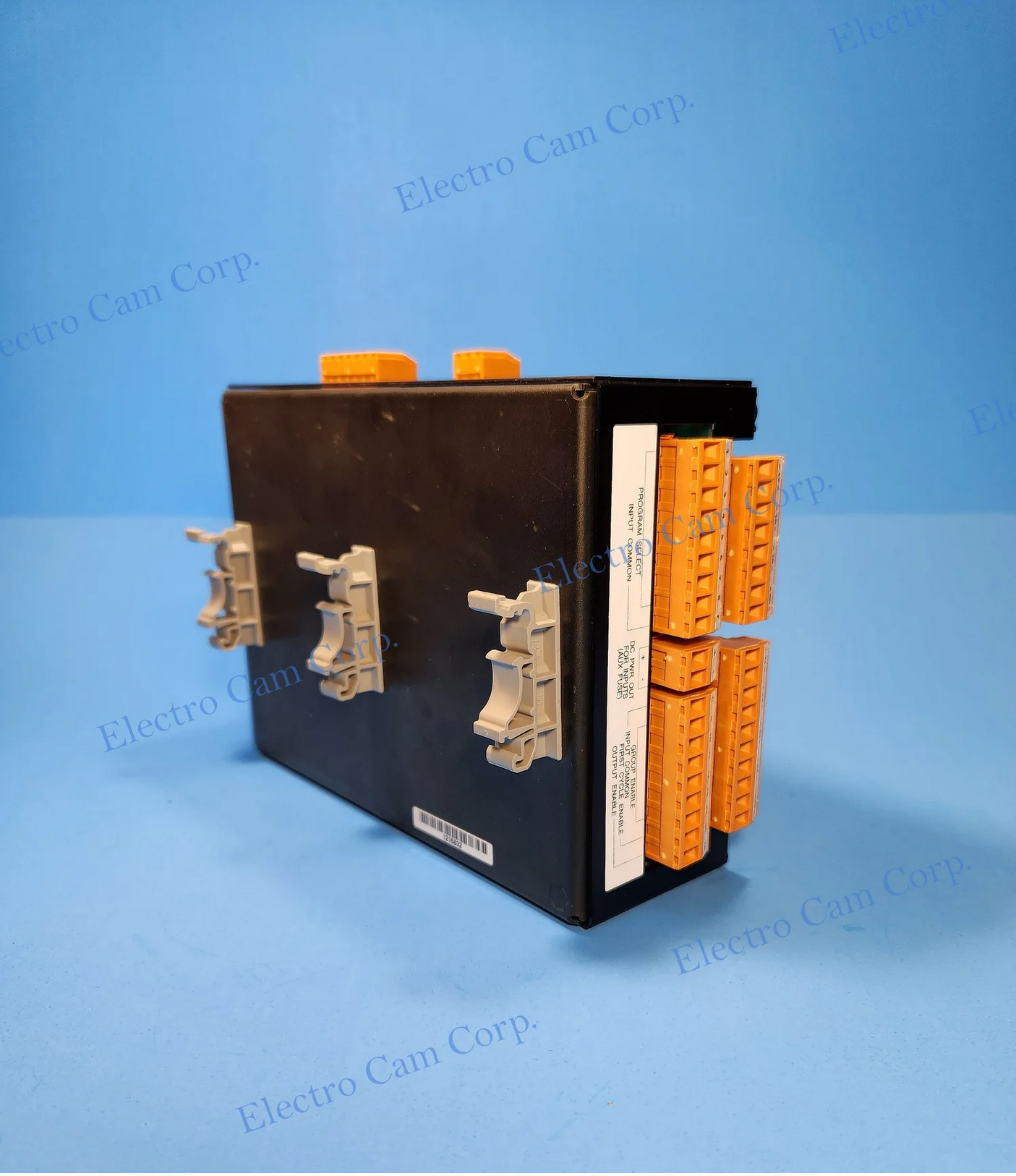

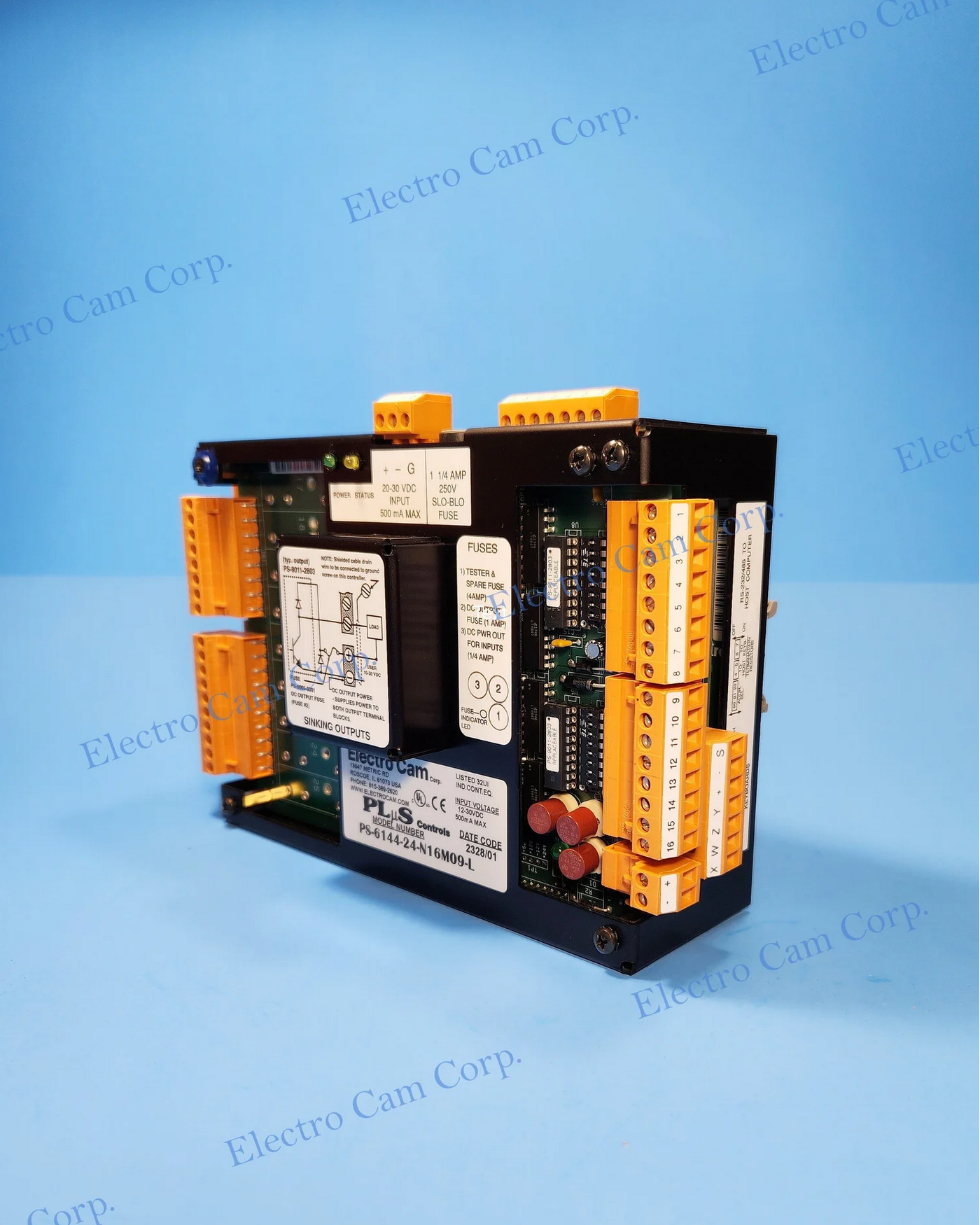

Resolver Input

24 VDC Input

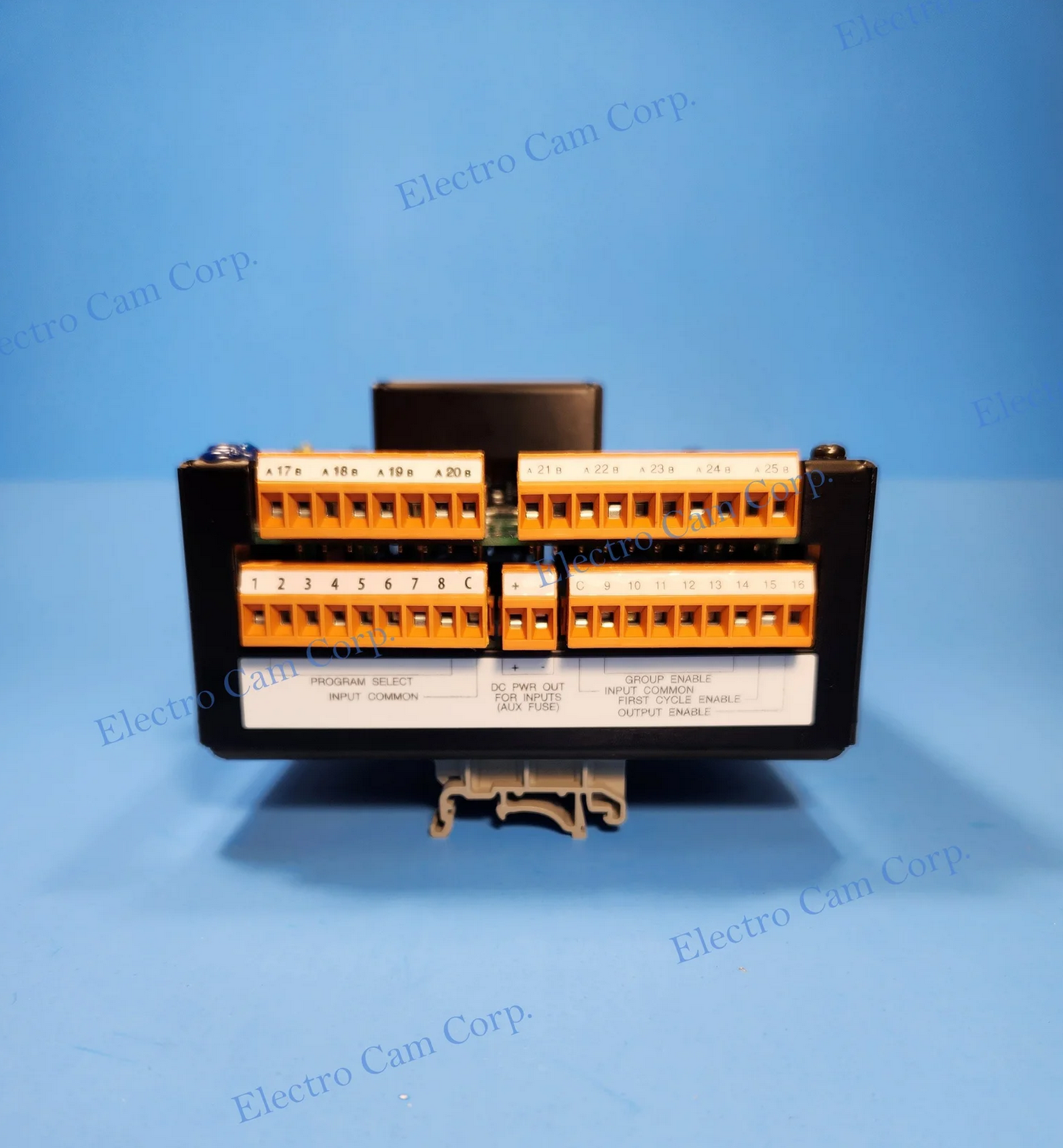

16 Sinking DC Transistor Outputs and/or SLIMLINE Modules on Keyboard/Controller back with input capability

Output Enable Modes & Standard Features

Up to 9 SLIMLINE AC or DC Modules may be mounted on controller, 2 of which may be analog

Keypad sold separately (PS-6400-24-001)

with Option – L – Leading & Trailing Edge Speed Compensation ($150)

Available Options:

F – Additional Setpoint/ Program Storage ($300.00)

G – Gray Code Position Output (8 bit) ($100.00)

G10 – Gray Code Position Output (10 bit) ($100.00)

H – 12 Bit Resolution ($350.00)

MSV – Multiple Controllers used with 1 Resolver ($75.00)

MB – Modbus ASCII Communication (N/C)

V – Vibration Protective Coating ($50.00)

*If combining options please call the factory, 815-389-2620
